12.  Modulation Envelope

Three controllers/knobs, Attack, Decay and Amount (both negative as positive). The possible destinations are a switchable OSC 2 or FM Amount.

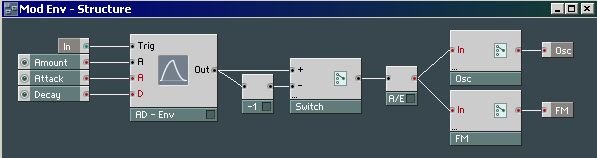

Figure 18. Modulation Envelope Structure

Modulation Envelope Structure

Figure 19. Modulation Envelope Panel

Modulation Envelope Panel
