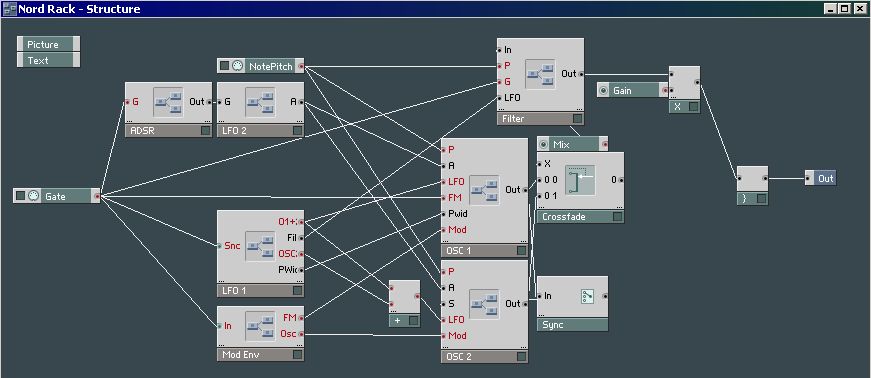

Finally...
- The Gate goes to an ADSR, Sync LFO 1, Mod Env, the Filter, and the FM Oscillator in OSC 1
- ADSR goes to LFO 2. This will make the LFO 2 a Sync slave from the ADSR and the audio signal is mixed
- LFO 2 goes to the A(mplitude) inputs of OSC 1 and 2.
- The 4 outputs of LFO 1 go to the corresponding inputs of the Oscillators.. and the Filter. The Add module that goes to the LFO input of OSC 2 simply sits there because you can't connect 2 wires to it.
- Mod Env has the destinations FM and OSC, and routes to the Mod(ulation Envelope) inputs of OSC 2 and OSC 1. In OSC 2 it will modulate the FM Amount.
- The NotePitch module drives the P(itch) inputs of OSC 1 and 2, and also the Filter (used for Keyboard Tracking).
- The Out of OSC 1 goes to the In of the Sync (switch), and the output of the Sync goes to the S input of OSC 2.
- The Crossfade's inputs come from OSC 1 and 2, and the output of a Mix Control knob.
- The Crossfade's output goes to the In of the Filter.
- This signal gets multiplied with a Gain (range 0 - 1.1), enters the voice combiner and there's your sound coming Out of your Audio Card.

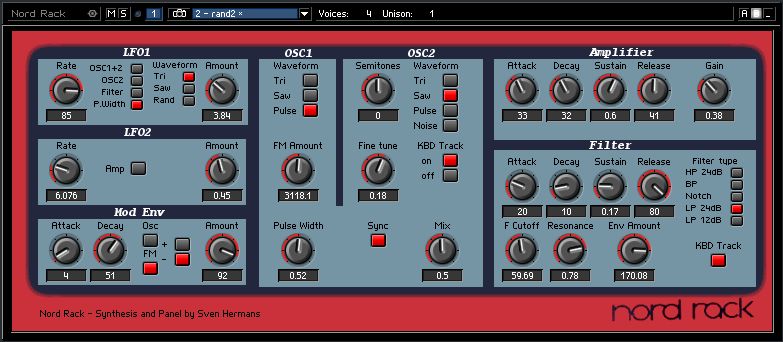

Some fun with the Appearance of the knobs (labes yes/no), changing the colors of the buttons and loading a Picture gives this result,
